Want to add more USB ports to your desktop PC? There are several ways you can do it, from simply connecting a USB hub to adding a PCIe add-in card. Here are four different ways to add extra USB ports to your desktop.
Connect a USB hub
Sometimes the simplest solutions really are the best
No matter what desktop I have, it never has enough USB ports for me, so I actually keep two USB hubs on hand for this very reason.
Both hubs I have are 10-port and offer up to USB 3.2 10Gb/s speeds. The thing to keep in mind though is the entire hub is limited to that 10Gb/s speed, so you can’t aggregate more than 10Gb/s through it.
However, I use my hub mainly for devices that don’t rely on heavy data transfers, like my Stream Deck, keyboard, mouse, speakers, printers, and other peripherals like that.
These hubs also often come either powered or unpowered. Since you’ll be plugging it into a desktop, I’d recommend powered as it will let you use a wider range of devices.
- Brand
-
Leinsis
- Connection
-
3.2 10Gbps
- Ports
-
10
- USB-C Power Delivery
-
No
- Power supply included
-
Yes

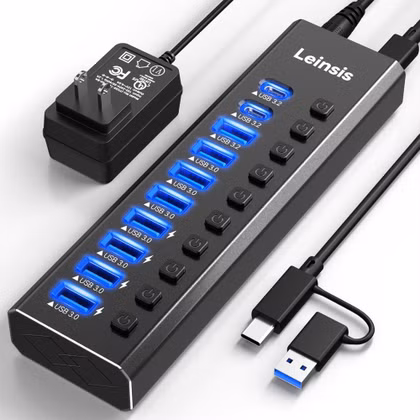

The Leinsis powered USB 3.2 hub features a USB-C connection and 10 USB ports. There’s two USB-C 3.2 10Gbps ports at the top, followed by a USB-A 3.2 10Gbps port below that. Then, there are seven more USB-A 3.0 5Gbps ports available to plug in your devices. Each USB port features a dedicated power button so you can turn devices on and off from the USB hub itself, should you want to. It also has a hybrid cable that’s USB-C on one end with both USB-C and USB-A on the other, depending on what your computer needs.

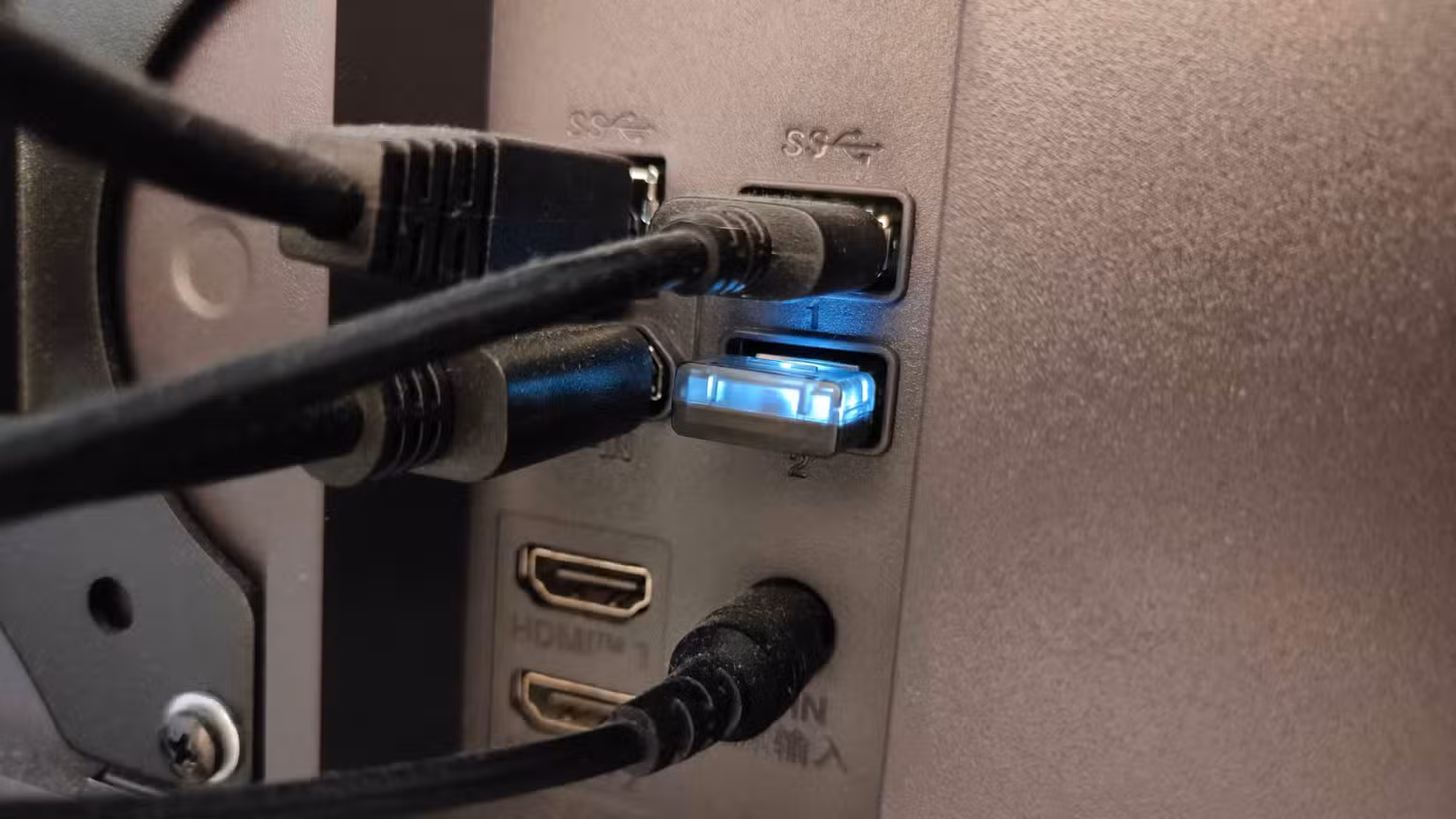

Use your monitor’s built-in USB ports
Though often forgotten, most monitors do have USB ports now
I used to ignore the USB ports on my monitor. I have no idea why, they just felt “inferior” to me. Turns out, they’re the same type of ports that you find on USB hubs because that’s all it is.
These days, I use every USB port my monitor offers! It’s just too convenient not to use them. Simply plug the cable from the monitor to your desktop (or use USB-C for both video and data if supported by your monitor) and the USB ports become live.
Like the USB hub above, I wouldn’t plug data-heavy devices into a monitor. Instead, use it for things like your mouse, webcam, keyboard, and other peripherals that are on top of your desk. It makes it easier to organize cables and can shorten the transmission distance needed for wireless peripherals like a mouse or headset.
Install a PCIe expansion card
You can even get USB4 this way!
PCIe can handle USB data just fine. In fact, many newer USB standards are backed by PCIe in some way.

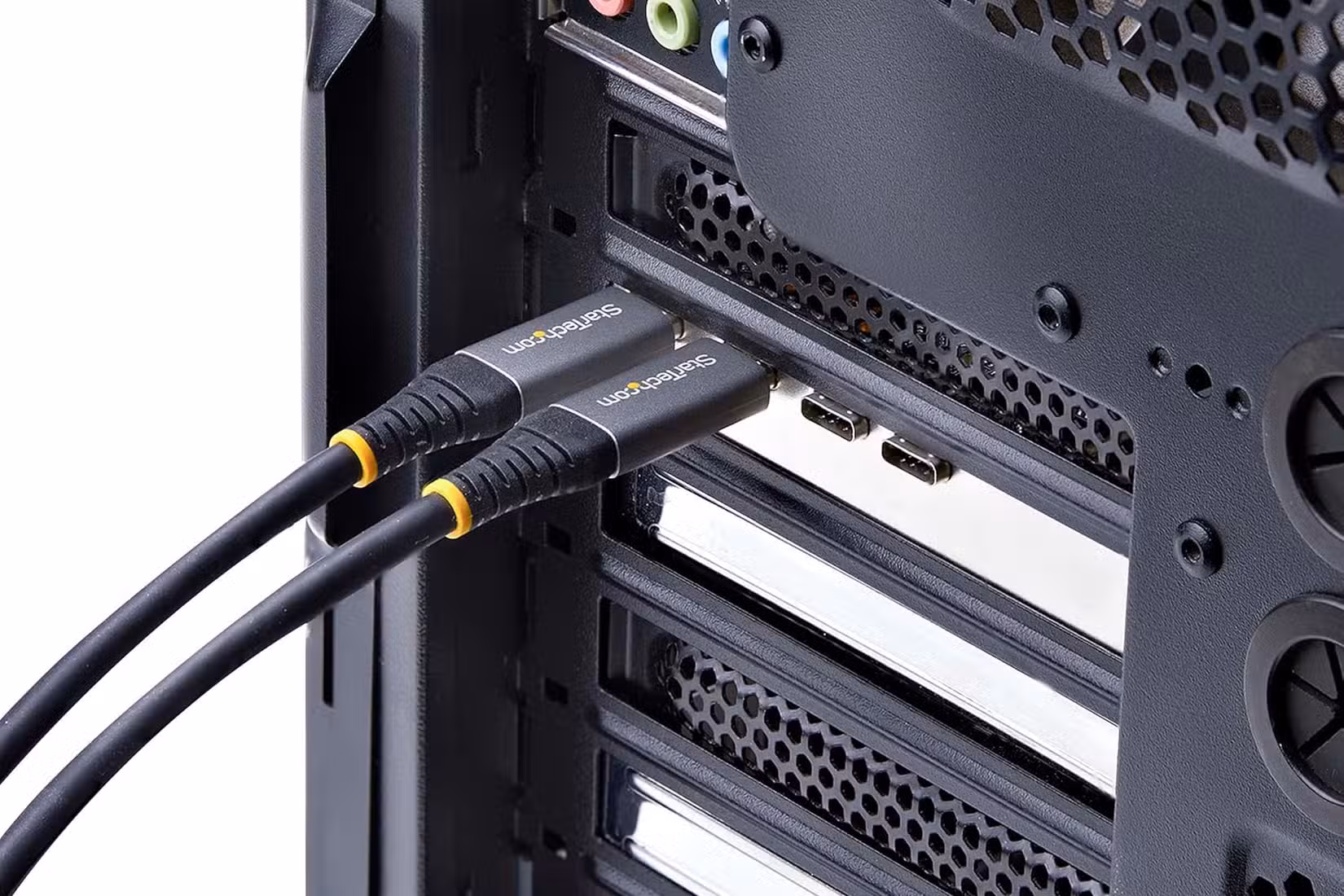

There are a number of expansion cards that can be installed in a PCIe slot in your computer. For instance, this 5-port PCIe expansion card offers four external 10Gb/s USB-C and one internal 10Gb/s USB-A ports.
Or there’s this USB4 card that has two USB4 40Gb/s ports and two DisplayPort 1.4 inputs on it. However, this one does need a special motherboard to work.
There are tons of PCIe expansion cards depending on your needs though. There’s even a pretty unique one that has four USB-A and three USB-C ports on it, giving you a total of seven additional USB ports on the back of your desktop.
Internal or external expansion made easy

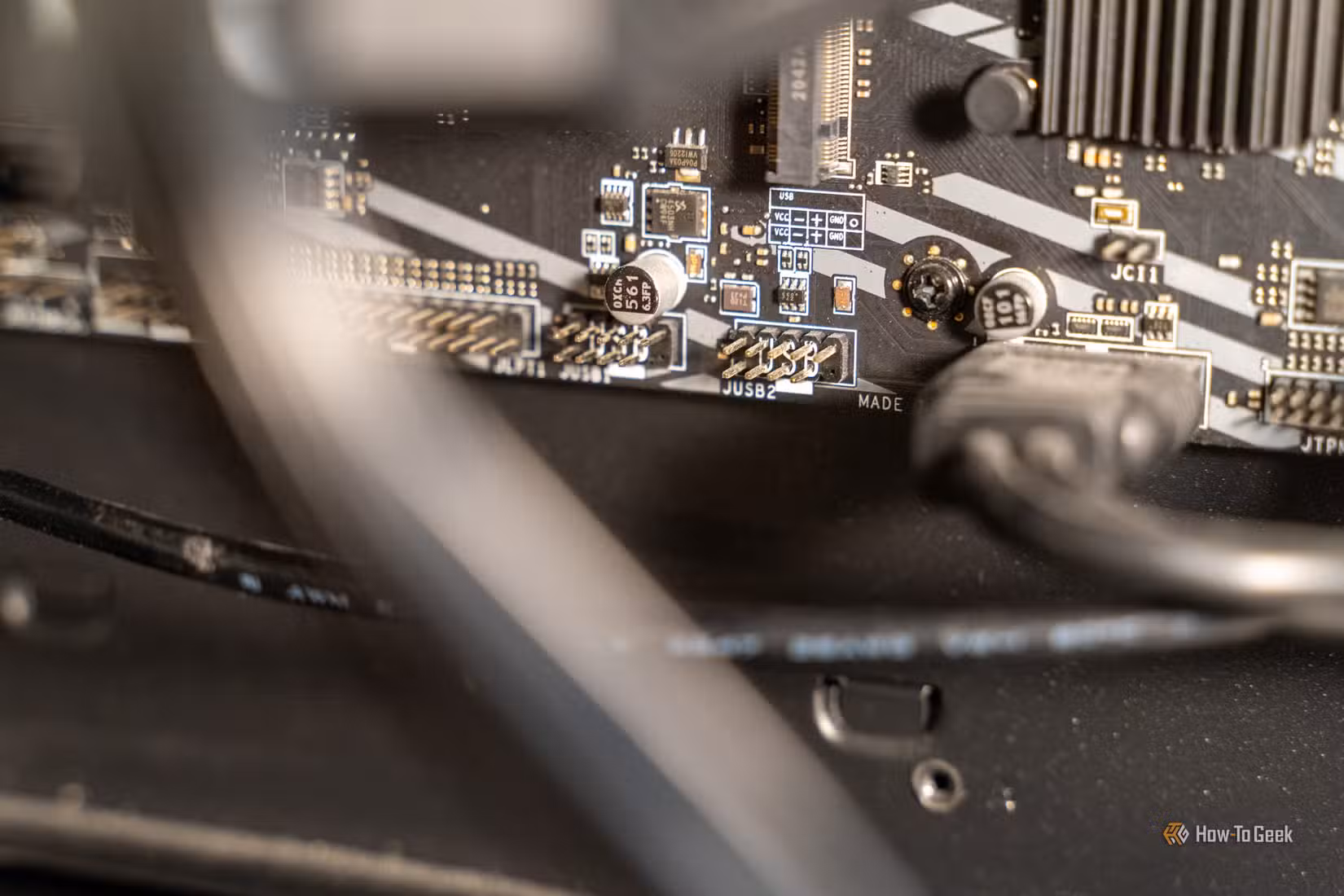

Your motherboard very likely has some unused USB headers just chilling waiting to be used. Most often, those USB headers are USB 2.0, which is pretty slow compared to more modern standards. However, you can utilize USB 2.0 ports for things like printers, mice, speakers, and much more.
However, there’s a chance that your motherboard has a USB-C header going unused, especially if your PC case lacks any front-panel USB-C ports. If so, then you can get something like this USB 3.2 Gen 2×2 adapter that adds a 20Gb/s USB-C port to the back of your PC. The only requirement is that you have a compatible internal header for it to plug into, which is present on many modern motherboards.

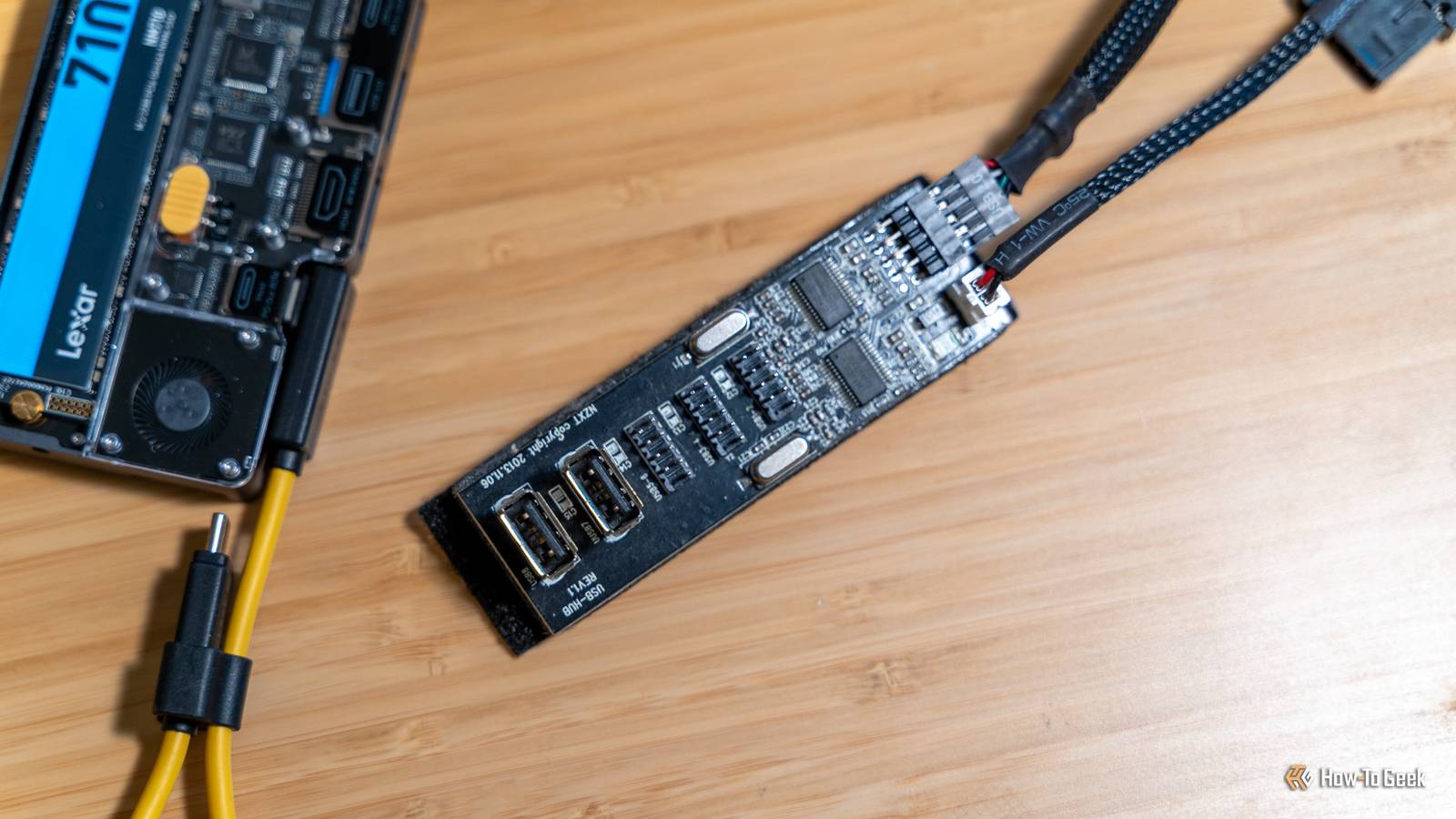

There are also two different styles of these types of adapters. Some are designed to sit inside of your PC and just add extra ports for things like powering fans or water pumps and the like, and others mount into a PCIe slot but plug into a header.
Either way you go, this is a great way to expand your desktop’s USB ports, and it’s often much cheaper than a dedicated PCIe add-in card because it’s translating an existing port to something you can plug into, instead of having to have a bunch of circuitry itself.
Your desktop is only as limited as your imagination
While I love my laptop, and I love mini PCs, full-size desktops will always have a special place in my heart. They’re just so much more upgradable and customizable than smaller form factor systems.
It’s why, no matter what I do in my setup, I will always have a full-sized desktop around. Mini PCs might only come with a handful of USB ports, but proper desktops can be expanded to have as many USB ports as you could ever want.
